Ultrafast flash memory with large self-rectifying ratio based on atomically thin MoS₂-channel transistor

Future perspectivesTwo-dimensional (2D) flash memory based on a 0.65 nm-thick MoS₂-channel transistor has shown superior performances in terms of higher programming/erasing speed and lower power consumption, which is attractive in future semiconductor architecture. However, flash memory does not function as a standalone system; it consists of word-line, bit-line, select transistor, peripheral circuit, and so on. The ability to combine the ultrafast flash memory with heterogeneous components into a homogeneous device is attractive, since it offers an avenue to integrate 2D devices into silicon industry without considering impedance matching. In addition, state-of-the-art 2D flash memories are mainly based on exfoliation method, and their operating voltage is relatively high, which is not suitable for industrialization and unwanted for low power applications. Much work deserves to be studied in depth, such as wafer-scale fabrication 2D flash memory arrays, layer-by-layer stacking 2D memory devices for 3D integrating, the reduction in operating voltage, et al. All these are necessary elements for lab-to-fab applications.

1.   Introduction

Memory devices play an important role in modern electronic information technology, being widely used in computers and electronic devices. In the past few decades, numerous memory devices such as static random-access memory, dynamic random-access memory, and non-volatile flash memory have been developed. Among them, flash memory is extensively used as an information-storage device owing to its multibit per cell storage property, low power consumption, and stable retention capability. In traditional flash memory, the floating gate and conducting channel are usually based on polysilicon, whereas the blocking layer and tunnelling barrier are composed of silicon oxide [1, 2]. Given the explosive growth of data generated every year, the dimensions of memory will continue to shrink to achieve higher packing density and higher performance. However, the dimensions of memory will finally reach their physical limit, where charge leakage occurs when the Si layer is below a certain thickness, which degrades the retention performance [3, 4]. In addition, the operation speed remains a bottleneck in the current memory industry.

The pursuit of high-performance non-volatile flash memory devices with fast operation and stable retention has motivated researchers to seek new solutions. The continuous study of two-dimensional (2D) materials offers a possible avenue for realising this objective. The most attractive features of 2D materials are the dangling bonds that are free on their surfaces, their atomic crystallinity in a single layer, and their ability to be adhered to one another by the van der Waals force [5-7], offering an attractive platform for novel 2D electronic devices on the atomic scale. Accordingly, many successful attempts have been made to use 2D materials and their heterostructures to improve memory performance [8-16]. For example, the van der Waals MoS₂/h-BN/multilayer graphene (MLG) heterostructure [13] and van der Waals InSe/h-BN/MLG heterostructure [14] based flash memory have been proven to enable a 20 ns programming/erasing speed. Other van der Waals heterostructures, such as PtS₂/h-BN/Grephene [15] and ReS₂/h-BN/Grephene [16] have been demonstrated to have multibit optical memory or multilevel flash memory capabilities. Among these 2D material-based memory devices, h-BN is usually chosen as the tunnelling insulator, whereas MLG acts as the floating layer. The crystalline nature of h-BN presents a defect-free tunnelling layer. In addition, the van der Waals h-BN/MLG heterostructure manifests a sharp interface immune to the interfacial dangling bonds. All of these merits are essential for high-performance 2D memory devices.

The floating layer is anticipated to be the other important constituent in non-volatile memory devices because it determines the charge storage capacity and endurance/retention operation. For traditional non-volatile memory devices other than polycrystalline Si [1], high-k dielectric materials such as HfO₂ [17-19], TaN [20], organic films [21, 22], and metallic metal (Au, Pt) nanoparticles or nanoclusters [23-25] have also been used as floating layers to store and erase charge. Among them, metallic nanocrystal floating layers have several advantages because of their high trapping states, stable retention, and larger memory windows [26]. In addition, compared with the MLG floating layer (work function of 4.6 eV) [14], the large work functions of Au (5.1 eV) and Pt (5.7 eV) as metal floating gates create a deeper potential wall between the blocking and tunnelling layers, ensuring less charge leakage and higher stability. Furthermore, a recent report proved that the direct transfer of 2D materials onto a well-deposited metal film could also form an ideal van der Waals contact [6]. Thus, combining 2D materials with a metallic floating gate may offer an alternative means of fabricating a new flash memory with advanced device performance.

This report proposes an ultrafast flash memory based on an atomically thin MoS₂-channel transistor. This memory device differs from any developed previously, as it is using Cr/Au metal film as a floating layer. Despite using an h-BN dielectric insulating layer, the h-BN/(Cr/Au) heterolayer was also high quality stacked with an atomically sharp interface. In addition, the transistor as flash memory manifests a 1000 s endurance time and 20 ns programming speed, which is as fast as those recently reported. Through work function modulation, the transistor also exhibits a unique reverse rectification property with a maximum on/off ratio of 10⁸ and a diode-like ideality factor (n) of 1.13. Accordingly, the transistor can function as an ultrafast flash memory and a bit-line select transistor. Finally, owing to the atomically thin MoS₂ channel (0.65 nm) and low capacitance (C 50 fF), the memory device demonstrates the potential for application as a high-frequency half-wave rectifier, enabling the 1 MHz sine voltage to be transformed into a half-wave sine signal.

2.   Results

2.1   Structural characteristics

Figure 1(a) shows the schematic crystal structure of the MoS₂-channel flash memory, in which the monolayer MoS₂ acts as a conduction channel, few-layer h-BN acts as a dielectric insulating layer, and the Cr/Au metal film serves as a floating gate with a transverse dimension larger than that of MoS₂. Supplementary figure S1 (available online at stacks.iop.org/MF/1/025301/mmedia) provides the corresponding optical microscopy images of each fabrication step. Firstly, the patterned 5 nm Cr/15 nm Au with sizes of 30 m was patterned and pre-deposited onto a heavily doped p-type SiO₂/Si substrate with a SiO₂ thickness of 300 nm. Subsequently, mechanically exfoliated few layers of h-BN and a monolayer of MoS₂ were transferred onto the upper surface of the Cr/Au metal film in order of precedence to form the MoS₂/h-BN/(Cr/Au) van der Waals heterostructure (figures S1(a) and (b)). Finally, Cr/Au metals with thicknesses of 5 nm/30 nm were patterned and deposited to form the prototype memory device, as shown in figures 1(b) and S1(c).

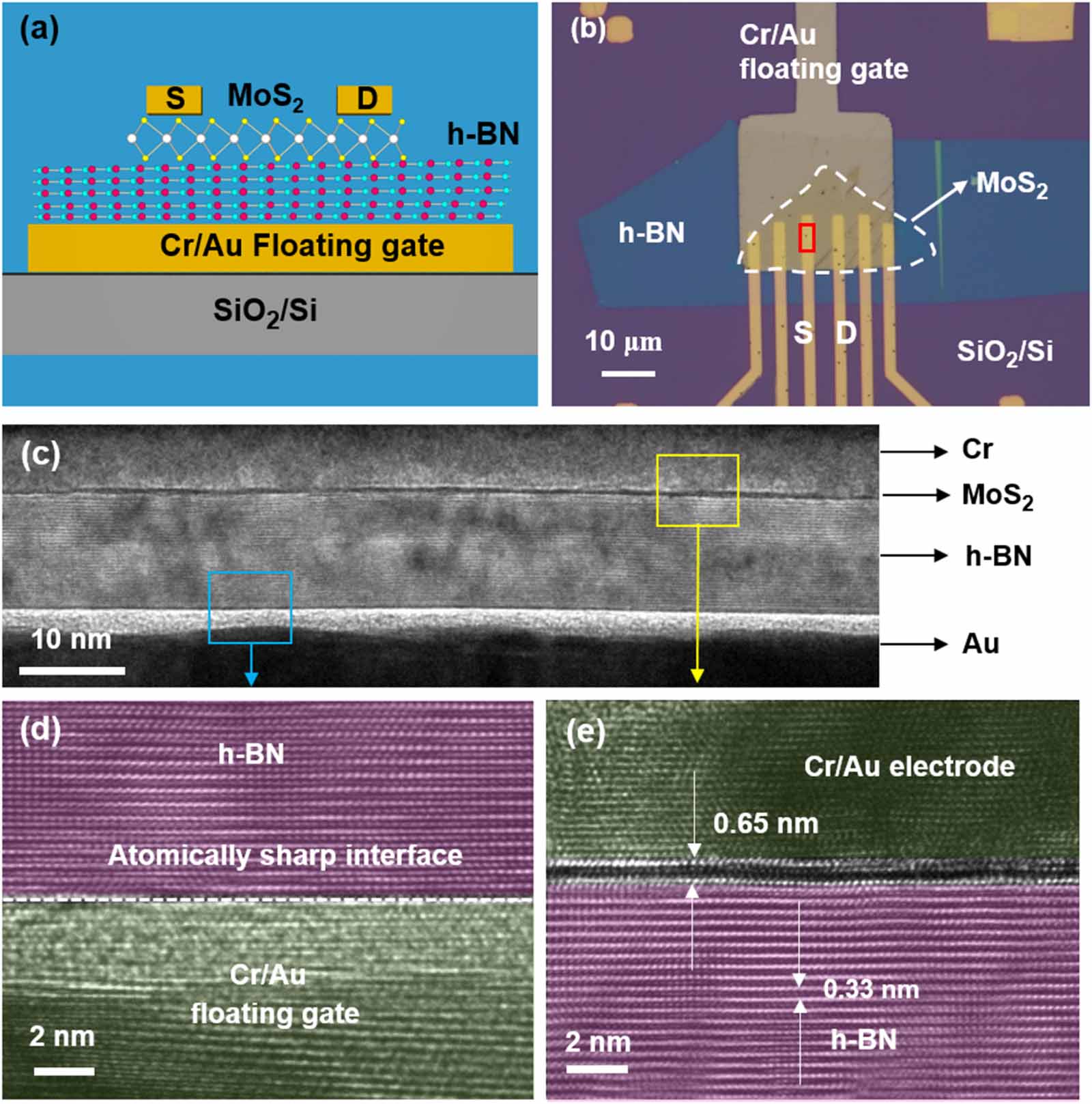

Figure  1.  Structural characteristics of the non-volatile flash memory based on the h-BN/MoS₂ van der Waals heterostructure. (a) Schematic crystal structure of the flash memory with monolayer MoS₂ as a conduction channel, a few layers of h-BN as a tunnelling layer, and Cr/Au metal film as a floating gate. The floating layer is sandwiched between the h-BN and SiO₂/Si substrate. (b) Optical microscope image of the MoS₂-channel flash memory, where each layer is formed by the van der Waals force and the scale bar is 10 m. (c) Cross-sectional transmission electron microscopy (TEM) image of the MoS₂/h-BN/(Cr/Au) heterostructure obtained from the red rectangular region in (b), where each layer can be observed clearly. (d) High-resolution-TEM (HRTEM) image of the selected blue area in (c), which proves the crystalline nature of the h-BN layer and high quality of the h-BN/(Cr/Au) heterostructure with an atomically sharp interface. (e) HRTEM image of the MoS₂/h-BN heterostructure from the selected yellow area in (c), proving that the 0.65 nm-thick MoS₂-channel has a sharp interface and defect-free metal contact.

DownLoad: Full-Size Img PowerPoint

Firstly, we characterised the stacking quality of the MoS₂/h-BN/(Cr/Au) van der Waals heterostructure using transmission electron microscopy (TEM). Figure 1(c) presents a cross-sectional TEM image of the MoS₂/h-BN/(Cr/Au) heterostructure, obtained from the red rectangular region in figure 1(b). In the TEM image (figure 1(c)), each layer of the heterostructure can be clearly distinguished, and the h-BN layer thickness is 10.6 nm. According to the magnified view (the selected blue area in figure 1(c)) in figure 1(d), there is a sharp interface between the Cr/Au floating layer and h-BN insulating layer, proving that the h-BN/(Cr/Au) heterostructure can be stacked by van der Waals forces with high quality. Figure 1(e) provides a high-resolution TEM (HRTEM) image of the MoS₂/h-BN heterostructure corresponding to the yellow-box region in figure 1(c), demonstrating the crystalline nature of each material, atomically sharp interface, and monolayer MoS₂ channel with a thickness of 0.65 nm. In addition, no obvious defects are observed at the interface of the Cr/Au metal electrode. A high-quality van der Waals heterostructure without interface defects is essential to eliminate interfacial Fermi level pinning effects and to improve device performance.

2.2   Output and transfer characteristics

Before studying the electrical performance of the MoS₂-channel flash memory, we prepared a MoS₂-channel field-effect transistor (FET) and examined its electrical properties. The MoS₂-channel FET was based on the MoS₂/h-BN heterostructure directly transferred onto a SiO₂/Si substrate, and figure S2 shows the corresponding optical microscope images of each fabrication step. Figure 2(a) provides a schematic of the electrical connections of the MoS₂-channel FET with a Cr/Au (5 nm/30 nm) metal electrode, where the gate voltage (V_BG) was applied at the back of the SiO₂/Si substrate. Figures 2(b) and S3 show the typical output curves (drain current, I_D, versus drain-to-source voltage, V_DS) of the MoS₂-channel FET. The linear increase in I_D as a function of V_DS proves the existence of good Ohmic-like contact between the MoS₂ channel and Cr/Au metal electrode [27-29]. In addition, according to the transfer curves (I_D versus V_BG) in figure 2(c), the MoS₂ conduction channel exhibits a strong n-type behaviour with a threshold voltage (V_TH) of -25 V. Thus, a high-performance MoS₂-channel FET with approximate Ohmic contact and high injection current (15 A at V_DS = 1 V and V_BG = -20 V) was demonstrated using this method.

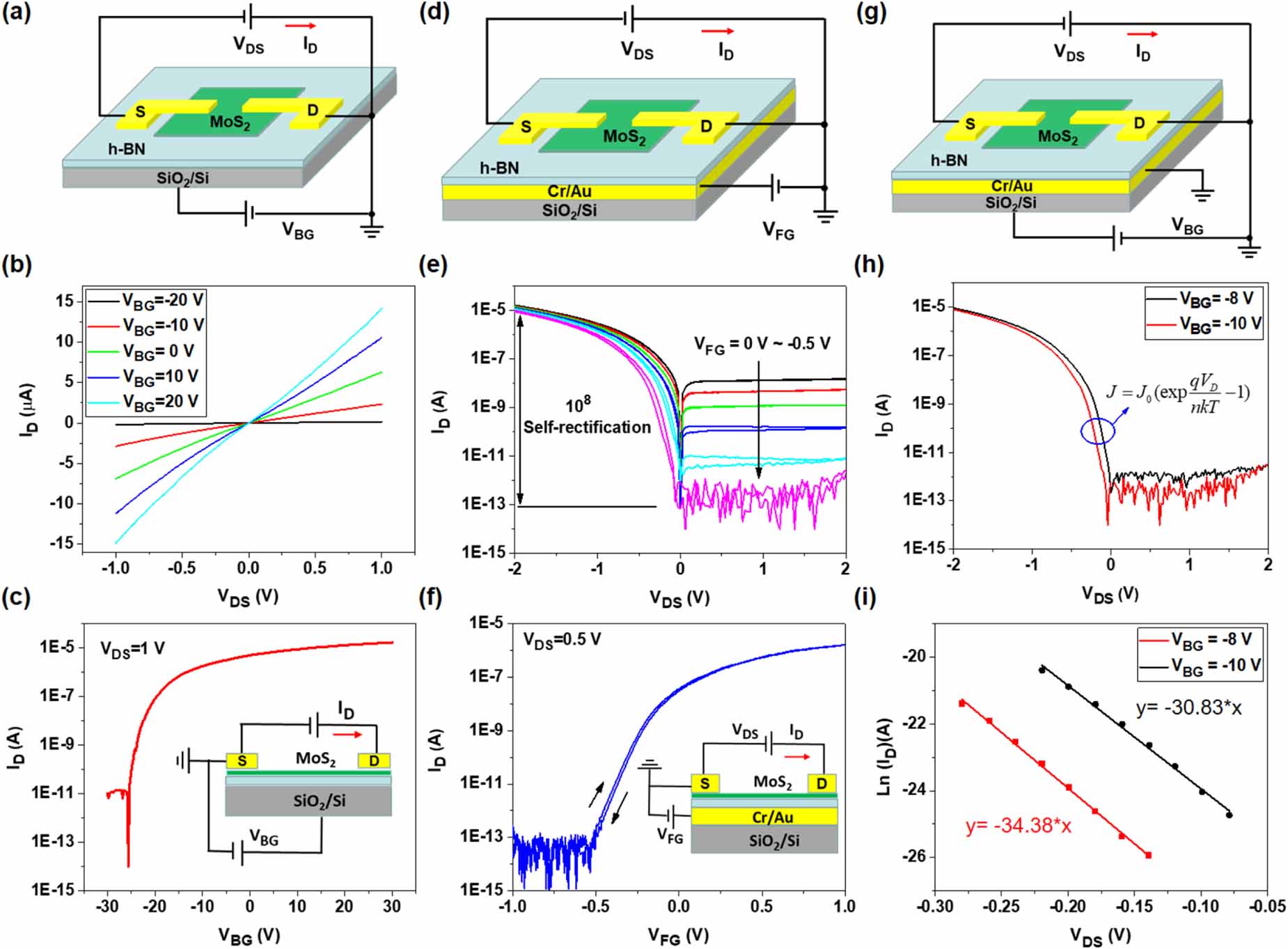

Figure  2.  Output and transfer characteristics of MoS₂-channel transistors with different device structures and electrical connections. (a) Schematic of the electrical connections of the MoS₂-channel field-effect transistor (FET) directly transferred onto the h-BN with SiO₂/Si substrate as the back gate (V_BG). (b) Output characteristics of the MoS₂-channel FET under different V_BG, where the drain current (I_D) increases linearly increasing drain-to-source voltage (V_DS), proving Ohmic-like contact. (c) Transfer curves of the MoS₂-channel FET, demonstrating the existence of an n-type conductive channel. Inset shows a cross-sectional view of the electrical connection. (d) Schematic of the electrical connection of the MoS₂-channel transistor with Cr/Au metal film as gate electrode (V_FG). (e) Output characteristics of the transistor in (d) under different V_FG, showing reverse self-rectification behaviour with an on/off ratio of 10⁸. (f) Double-swept transfer curve of the transistor. No obvious hysteresis is seen from the curve, suggests the existence of a sharp MoS₂/h-BN/Au heterostructure interface. (g) Schematic of the electrical connections of the MoS₂-channel transistor connected with V_BG while grounding V_FG. (h) Output characteristics of the transistor in (g) at V_BG = -8 V and -10 V. The output curves behaved as a reverse p-n junction diode with an ideality factor of 1.13. (i) The ln(I_D) V_DS curves acquired from the blue circle region in (h), where the fitted linear slopes are -30.83 and -34.38.

DownLoad: Full-Size Img PowerPoint

Then, the output and transfer characteristics from Cr/Au metal mediated MoS₂-channel transistor was studied. In contrast to the MoS₂-channel FET depicted in figure 2(a), an additional Cr/Au (5 nm/15 nm) metal film was deposited between the SiO₂ block layer and h-BN tunnelling layer. Figure 2(d) shows a schematic of the electrical connection of the transistor when the gate voltage applied at Cr/Au metal (V_FG). A unidirectional rectification characteristic is observed (figures 2(e) and S4) rather than a linear output characteristic (figure 2(b)). The more negative the V_FG applied, the larger the reverse reaction ratio obtained. The maximum reverse rectification ratio reaches 10⁸ at V_DS = 2 V and V_FG = -0.5 V. This value is larger than most reported for 2D material-based Schottky diodes [30, 31], backward diodes [32-34], and van der Waals p-n heterojunction diodes [35, 36]. Figure 2(f) shows the transfer characteristics of the transistor at V_DS = 0.5 V. When V_FG is swept between -1 V and 1 V, I_D increases with increasing V_FG, proving the n-type behaviour of the MoS₂ channel. In addition, due to ultrathin nature of the h-BN (10.6 nm) insulating layer, V_TH could be further reduced to -0.5 V. No obvious hysteresis appears in the curve, suggesting the high quality of the heterostructure interface with negligible trap states.

It is notable that the Cr/Au metal electrodes in figures 2(a) and (d) were fabricated using the same deposition facility. However, the different output curves in figures 2(b) and (e) suggest that the introduction of a metal film would result in unusual electrical performance. Similar results were also observed when we grounded V_FG and applied V_BG, the electrical connection is schematically shown in figure 2(g). Figure S5 depicts the corresponding I_D-V_DS curves at V_BG ranging from 0 V to -10 V, while figure 2(h) illustrates the output curves obtained from figure S5(b) at V_BG = -8 V and -10 V, respectively. A maximum rectification ratio of 10⁸ occurs at V_BG = -10 V. The reverse rectification is mainly attributed to the formation of two asymmetric Schottky contacts at the drain and source electrodes; the work mechanism had been explained in our previous work [37] and reported by other research groups [38, 39]. The reverse rectification behaviour can be further explained using the energy-band diagrams in figures S6 and S7. When a negative V_FG or V_BG is applied to the floating layer or SiO₂/Si substrate (figure S7(a)), a downward electric field is formed between the drain and gate. This situation results in the depletion of the MoS₂-channel at the drain and source sides, changing from symmetric contact barrier (figure S7(a)) to asymmetric Schottky contact (figure S7(b)). We define $\text{q}{\varphi }_1$ as the barrier height at the drain side and $\text{q}{\varphi }_2$ as the barrier height at the source side, which satisfy $\text{q}{\varphi }_1$ > $\text{q}{\varphi }_2$. For V_FG < 0 V and V_DS > 0 V (figure S7(c)), the more negative the V_FG or V_BG value applied, the higher the $\text{q}{\varphi }_1$ value achieved, which in turn decreases the forward I_D and increases the on/off ratio. For V_FG < 0 V and V_DS < 0 V (figure S7(d)), the Schottky barrier at the drain side is a reverse bias, whereas the barrier at the source side is a forward bias. However, the voltage does not change the barrier height of $\text{q}{\varphi }_1$, and the exponential increase in I_D may be attributed to the image force-induced barrier-lowering effects [39]; that is, the Schottky barrier height at the drain side decreases when the forcing electrode is in the reverse bias condition (V_DS < 0 V).

Accordingly, figure 2(i) plots the ln(I_D)-V_DS curve in the V_DS range from -0.08 V to -0.28 V (green circle region in figure 2(h)), showing a linear increase. The slopes of the linear fitted curves are -30.83 and -34.38; thus, the calculated n values at room temperature (T = 298 K) are 1.26 (V_BG = -8 V) and 1.13 (V_BG = -10 V), respectively. These values are very close to that of the ideal p-n diode. This phenomenon is very interesting because it can combine the low onset voltage of the Schottky diode and the large on/off ratio of the p-n junction diode. These merits enable the usage of this device as a bit-line select transistor in NAND-flash applications [42].

Figure 3(a) depicts the electrical connections of the MoS₂-channel transistor function as flash memory when I_D is controlled by V_BG without grounding V_FG. I_D was measured as a function of V_DS as V_BG was increased from -10 V to 10 V in 5 V steps. As seen in figure 3(b), for V_BG = -10 V (black curve), I_D gradually decreases to 10^-12 A. Under this condition, the MoS₂ channel is completely switched off, and the memory device is in a high-resistance state (low state). However, when V_BG increases to -5 V (red curve), the maximum I_D at V_DS = -2 V is approximately 10^-5 A. The drain current seldom changes even when V_BG increases further from -5 V to 10 V. Under this condition, the MoS₂ channel is completely switched on, and the memory device is in a low-resistance state (high state). Similar results are also evident in figure S8 when V_BG changes from 0 V to -20 V in -5 V steps. Only two states are observed (i.e. the low-resistance state’ at V_BG = 0 V and the high-resistance state’ at V_BG < 0 V), which may be because the MoS₂-channel electrons tunnel through the h-BN layer and accumulate at the Cr/Au metal floating layer or the stored electrons at the floating layer return to the MoS₂ channel. The stored or depleted electrons weaken or strengthen the electric field strength of V_BG.

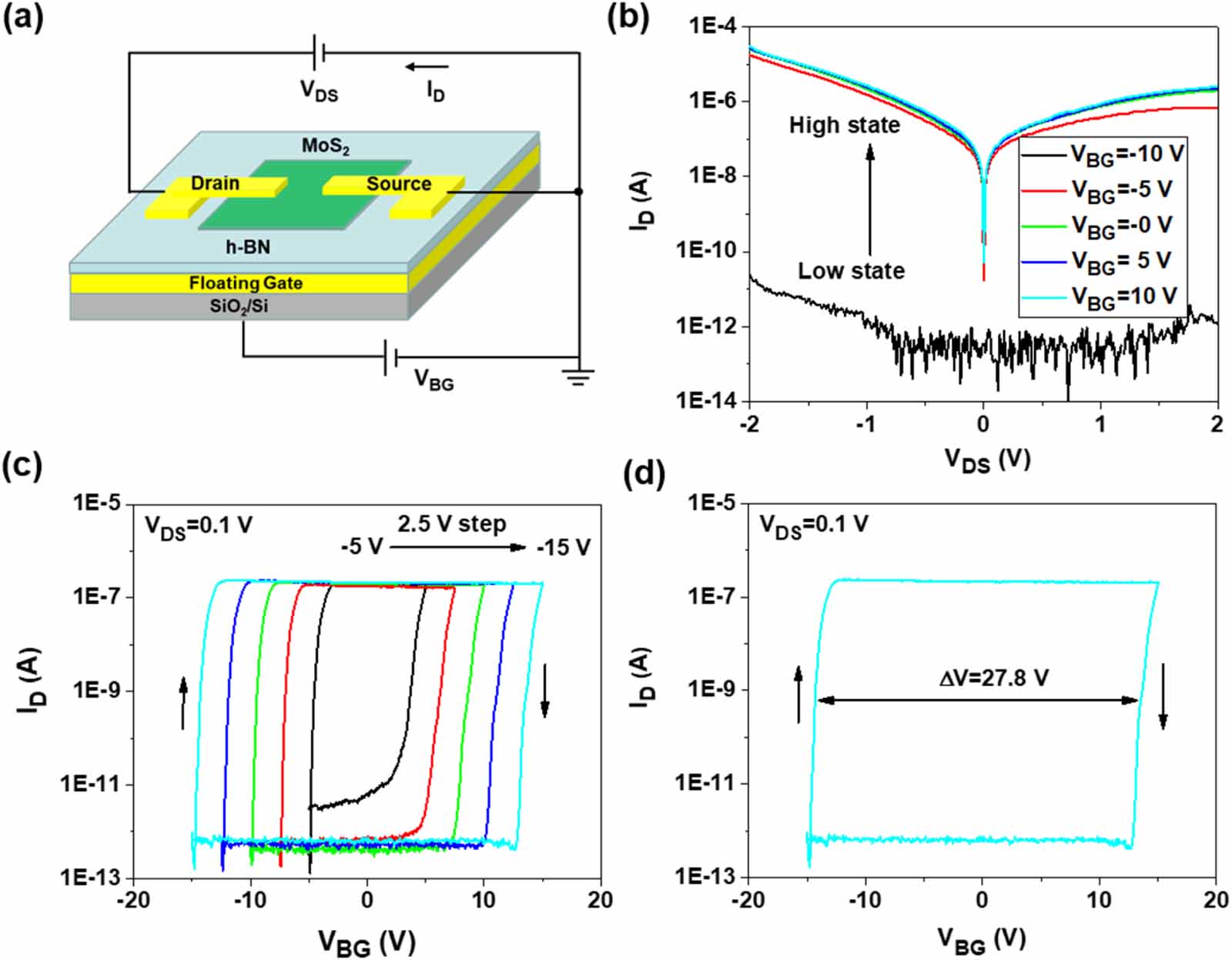

Figure  3.  Output and transfer characteristics of the MoS₂-channel flash memory. (a) Schematic of the electrical connections of the memory device when V_BG is applied at the back of the SiO₂/Si substrate without grounding V_FG. (b) Output characteristics of the memory device at V_BG from -10 V to 10 V in 5 V steps, showing only two states (low and high states) regardless of the variation of V_BG. (c) Transfer curves of the memory device at V_DS = 0.1 V, where the memory window width increases with increasing V_BG. (d) Corresponding transfer curves of the memory device acquired from (c) with V_BG swept between -15 V and 15 V. The calculated memory window width is 27.8 V, suggesting that more electrons can be stored in the Cr/Au floating layer.

DownLoad: Full-Size Img PowerPoint

Figure 3(c) shows the dual-sweep transfer curves of the MoS₂-channel transistor (corresponds to figure 1(b)). Numerous transfer curves with a maximum V_BG increasing from 5 V to 15 V in 2.5 V steps are apparent, and an obvious memory window exists even when V_FG doubles from -5 V to 5 V. In addition, the memory window width (V, figure S9) proportionally increases with increasing V_BG, and the maximum memory window width reaches 27.8 V when V_BG doubles from -15 V to 15 V (figure 3(d)). Similar results are observed for other MoS₂-channel memory devices (figure S10). In the dual-swept transfer curves of the memory device acquired by sweeping V_BG back and forth at V_DS = 0.1 V, a memory window width of 41.8 V is observed when V_BG changes from -25 V to 25 V. The large memory window is mainly attributed to the high-density states of the metal floating layer, facilitating potential applications in high-performance flash memory.

2.3   Ultrafast flash memory performances

We then used an energy diagram to elucidate the working mechanism of the memory device. When a positive V_BG pulse (25 V, 20 ns) was applied at the back of the SiO₂/Si substrate, electrons from the MoS₂-channel began tunnelling through the h-BN insulating layer and accumulated at the Cr/Au floating layer, corresponding to the programme operations (figure 4(a)). The accumulated electrons were well stored in the floating layer, even when the applied V_BG pulse was removed, resulting in a low conductance of the MoS₂ channel, corresponding to the 0’ state (figure 4(b)). However, when a negative V_BG pulse (-25 V, 20 ns) was applied to the substrate, the stored electrons in the floating layer began tunnelling back to the MoS₂ channel, which corresponds to the erase operation (figure 4(c)). After treatment with a -25 V, 20 ns V_BG pulse, the stored electrons in the floating layer were completely removed and the MoS₂ channel returned to its original state with high conductance, corresponding to the 1’ state (figure 4(d)).

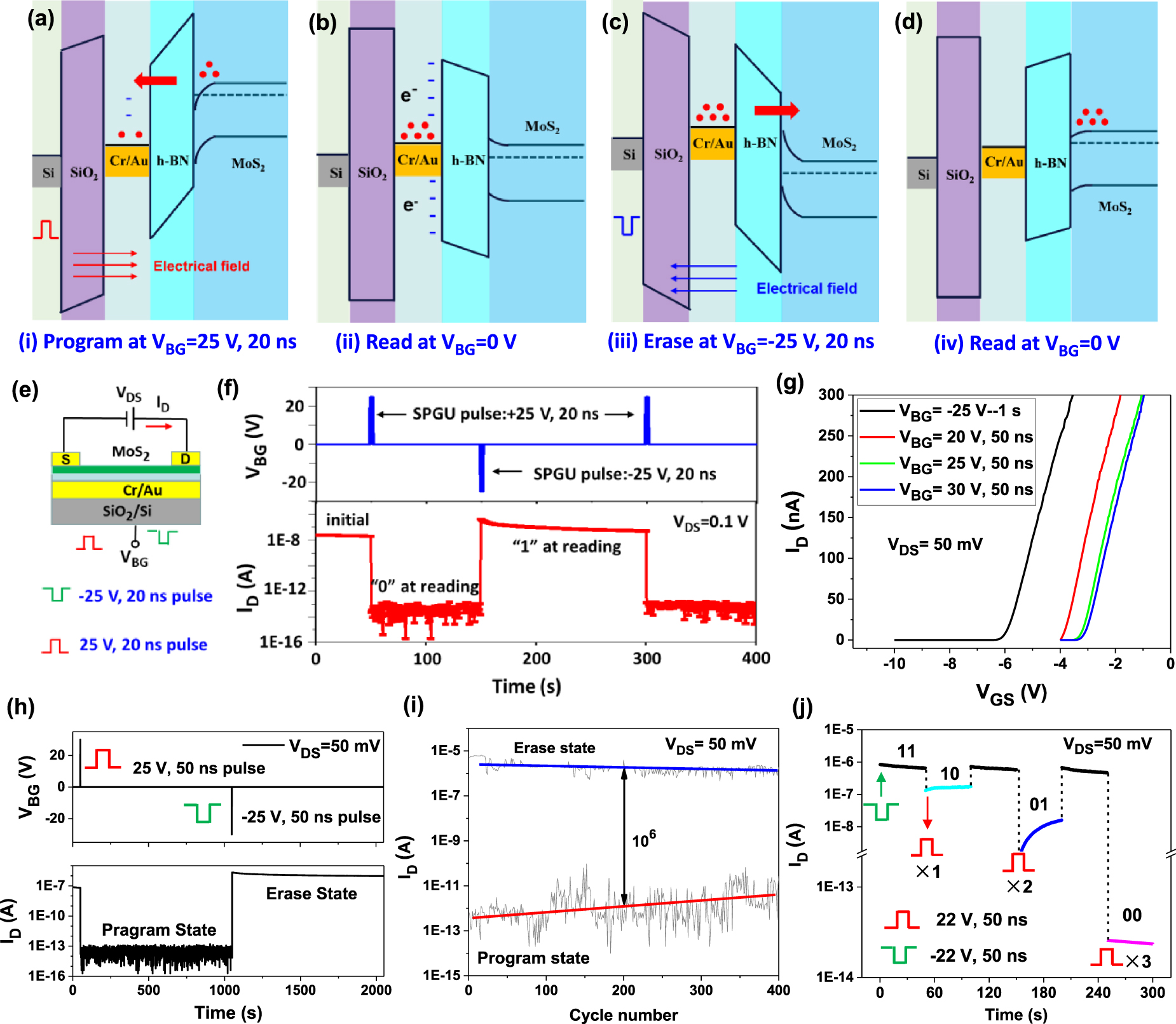

Figure  4.  Programming and erasing performances of the MoS₂-channel flash memory. (a) Schematic energy-band diagrams of the memory device programmed after applying a 25 V, 20 ns V_BG pulse; (b) read at V_BG = 0 V; (c) erased with a V_BG = -25 V, 20 ns pulse; and (d) read at V_BG = 0 V. (e) Electrical connection of the memory device when a 20 ns, 25 V pulse was applied at the back of the SiO₂/Si substrate. (f) Time-resolved I_D change after applying periodic +25 V and -25 V, 20 ns V_BG pulses. I_D was measured at V_DS = 0.1 V. Within the time intervals, the 0’ and 1’ states seldom change, indicating ultrafast non-volatile memory. (g) Transfer curves of the MoS₂-channel flash memory before and after applying different positive pulses (20, 25, and 30 V; pulse duration 50 ns); the device shows a distinct rightward shift in the threshold voltage. (h) Retention characteristics of the MoS₂-channel flash memory with 10.6 nm-thick h-BN. V_BG is 25 V, 50 ns, and the device reveals stable retention up to 1000 s. (i) Endurance of the MoS₂-channel flash memory with 25 V, 1 s pulses for 400 writing/erasing cycles. (i) Reproducible two-bit storage characteristics of the memory device. Under a certain voltage pulse (22 V, 50 ns), multilevel states are realised by increasing the number of pulses.

DownLoad: Full-Size Img PowerPoint

The typical programming/erasing operations of the proposed MoS₂-channel flash memory were experimentally investigated using 25 V/-25 V, 20 ns V_BG pulses. Figure S9(a) shows an optical microscopy image of the MoS₂-channel flash memory, and figure 4(e) schematically depicts the electrical connection of the measurement setup. The programming and erasing operations were performed by separately applying 25 V, 20 ns V_BG pulses (figure 4(f)), whereas the readout operations were performed with V_DS fixed at 0.1 V. As seen from the curve, within a 250 s time period, the 0’ and 1’ states seldom change, indicating that the device can work as an ultrafast speed flash memory with a 20 ns operation speed. Figure 4(g) provides an example of flash memory performance analysis by characterising the transfer curves after treatment with different V_BG pulses. According to the optical microscope image in figure 1(b), the memory device contains a 0.65 nm-thick MoS₂ channel and a 10.6 nm-thick h-BN layer. Firstly, we applied a -25 V, 1 s V_BG pulse to erase the MoS₂ channel fully. Subsequently, the transfer curve of the memory device was measured (black line, figure 4(g)) with V_TH of approximately -6 V. After applying a 20 V, 50 ns pulse, V_TH is right-shifted to -4 V. However, when the pulse V_BG further increases to 25 V, V_TH is right-shifted to -3.3 V. V_TH gradually saturates when the pulse V_BG is larger than 25 V. The right shift of V_TH further proves that the electrons tunnel from the MoS₂ channel to the floating gate.

The endurance and retention characteristics are two key parameters for flash memory devices. Figure 4(h) depicts the retention property of the memory device with 10.6 nm-thick h-BN. Under this condition, the pulse voltage was fixed at 25 V, whereas the pulse width increased to 50 ns to tunnel the electrons fully. When a positive V_BG pulse was applied, the MoS₂ channel was driven to a low-conductance state, corresponding to the programme state, and vice versa. The retention time was as long as 1000 s, suggesting good stability of this memory device. It is worth mentioning that, the on current (erase state) has a slightly decrease within 1000 s retention time, this may be attribute to carrier recombination at floating layer and insulator interface. In addition, according to the switching performance of the MoS₂-channel flash memory in figure S11, the two states are almost unchanged within the time sequence. The endurance characteristics (figure 4(i)) show an on/off ratio of up to 10⁶ for 400 program/erase cycles. The number of program/erase cycles of our device may be low compared with those of non-volatile flash memory in CMOS technology (>10⁴ cycles) [1, 43] and other 2D material-based memory devices (>2 10³ cycles) [13, 14, 44], which may because of the use of active metal Cr in the Cr/Au floating layer. That is, the Cr atoms are easily oxidised to form Cr³⁺ cations under a voltage bias. Subsequently, the Cr³⁺ cations migrate into the h-BN insulating layer under a positive V_BG pulse, resulting in the formation of a conductive filament and destruction of the crystal structure of h-BN [45, 46]. We are confident that the endurance of the MoS₂-channel flash memory can be further improved if we choosing an inactive metal (Pd, or Pt) [45] as the floating layer or a new van der Waals dielectric material (Sb₂O₃, Bi₂SeO₅) [47, 48], which will be studied in the future.

Because the number of tunnelling electrons can be modulated by the pulse width and pulse voltage, figure 4(j) exemplifies the two-bit storage capabilities of the MoS₂-channel flash memory. Under a certain pulse voltage (22 V, 50 ns), the multilevel states (11’, 10’, 01’, and 00’) are achieved by increasing the number of pulses. Overall, the MoS₂-channel transistor also has potential applications in multibit flash memory. It is worth mentioning that the main difference between our flash memory transistor and recently reported 2D material-based memory devices (i.e. van der Waals MoS₂/h-BN/MLG heterostructures [13], van der Waals InSe/h-BN/MLG heterostructures¹⁴) is the manner in which the floating gate is separately formed by the Cr/Au metal film and multilayer graphene. Owing to the large work function difference and work function engineering of the Cr/Au floating layer and MoS₂ channel, we observed the formation of two asymmetric Schottky contacts with the MoS₂ conduction channel rather than Ohmic-like contact (figure S3). Thus, the MoS₂-channel flash memory also exhibits a reverse self-rectification behaviour with an on/off ratio >10⁸ and a p-n diode-like ideality factor as low as 1.13. This phenomenon is very interesting because the device could function not only as an ultrafast flash memory, but also as a potential application for a bit-line select transistor. Accordingly, the ultrafast flash memory and a selected transistor can be combined. If the switch on/off frequency of the selected transistor is as fast as that of the flash memory, the 2D material-based memory device would be attractive for 2D material-based NAND-flash applications. The switch on/off frequency can be characterised by its half-wave rectification performance, as shown in figure 5.

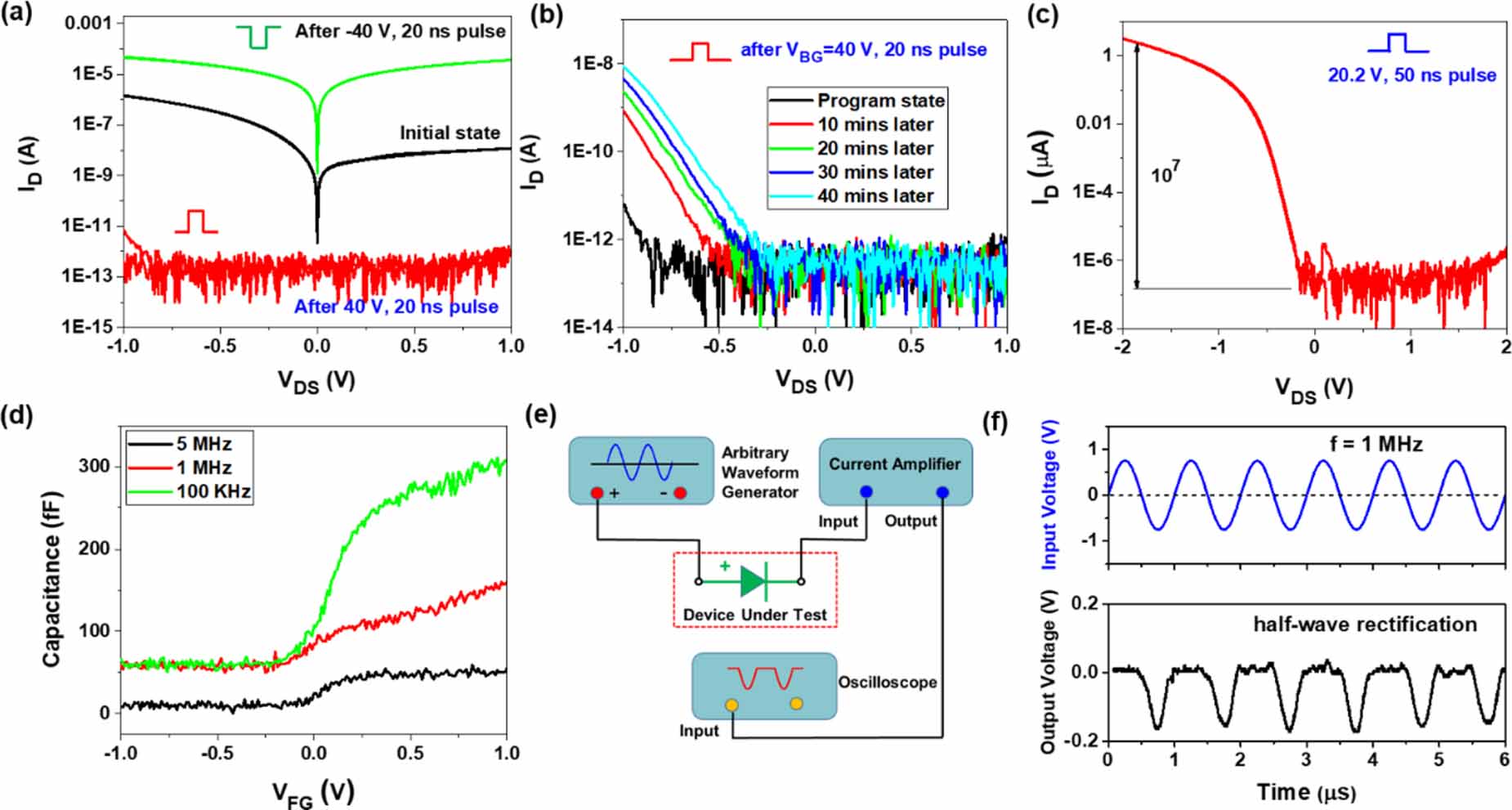

Figure  5.  High-frequency sine single half-wave rectification property based on MoS₂-channel flash memory. (a) Output characteristics of the MoS₂-channel flash memory in the initial state (black curve), high-resistance state (red curve, treated with a 40 V, 20 ns V_BG pulse), and low-resistance state (green curve, treated with a -40 V, 20 ns V_BG pulse), respectively. (b) Endurance characteristics of the memory device after treatment with a 40 V, 20 ns V_BG pulse, where the output curves were separately measured in 10 min intervals. (c) Output characteristics of the MoS₂-channel flash memory after treatment with a -20.2 V, 50 ns V_BG pulse. Reverse rectification is observed with an on/off ratio of 10⁷. (d) Capacitance (C)-voltage (V_FG) characteristics of the memory device between the drain and floating layer at frequencies of 5 MHz, 1 MHz, and 100 KHz. (e) Schematic illustration of the half-wave rectifier setup, which consists of an arbitrary waveform generator, a current amplifier, and an oscilloscope. (f) Half-wave rectification characteristics of the MoS₂-channel transistor. After applying a 1 MHz input sine signal, the memory device output a perfect half-wave signal.

DownLoad: Full-Size Img PowerPoint

2.4   High-frequency half-wave rectification characteristics

Because the number of tunnelling electrons can be modulated by the pulse voltage, the output characteristics of the MoS₂-channel flash memory under different V_BG pulse conditions were studied. Figure S12(a) shows the schematic electric connections of the measurement setup, where the I_D-V_DS curves were separately measured under the initial conditions (without applying a V_BG pulse), after treatment with a negative V_BG pulse (-40 V, 20 ns), and after treatment with a positive V_BG pulse (40 V, 20 ns). Figure 5(a) depicts the corresponding output curves. Without applying a V_BG pulse (initial state), we observed a reverse drain current two orders of magnitude larger than the forward condition (black curve in figure 5(a)), in agreement with the results in figure 2(e). After applying a 40 V, 20 ns V_BG pulse (red curve in figure 5(a)), I_D seldom changes (3 10^-13 A). Under these conditions, the tunnelling electrons are fully accumulated in the floating layer, resulting in MoS₂ channel switch-off. However, after applying a -40 V, 20 ns V_BG pulse, a symmetric I_D as a function of V_DS was obtained, and the maximum I_D at V_DS = 1 V was 44 A (green curve in figure 5(a)), eight orders of magnitude higher than that under the switch-off condition.

Figures 5(b) and S12(b) present the endurance performance of the MoS₂-channel flash memory after treatment with different V_BG pulses. The I_D-V_DS curves were separately measured in 10 min intervals. As seen from the curves, both the low-resistance state (figure S12(b)) and high-resistance state (figure 5(b)) can be retained for more than 30 min with little change, suggesting the good retention capability of the MoS₂-channel flash memory. The output curves of the same memory device were also studied by decreasing the V_BG pulse voltage and increasing the pulse width. Figure S13(a) shows a schematic of the electrical connections of the memory device with variation from 25 V to 18 V, while the pulse width was fixed at 50 ns. With a 25 V, 50 ns V_BG pulse (figure S13(b)), we obtained the same output curves as in figure 5(a). However, when the V_BG pulse decreased to 21 V (figure S13(c)) or below (figures S13(d) and (e)), the MoS₂-channel was unable to switch-off fully owing to the insufficient tunnelling process. Figure 5(c) depicts one output curve after treatment with a 20.2 V, 50 ns V_BG pulse, showing a reverse rectification property with an on/off ratio of up to 10⁷, similar to the results in figure 2(e). Under this condition, only some of the electrons are capable of tunnelling through the h-BN layer. Thus, the reverse rectification behaviour can be realised either by a constant negative V_FG pulse (figure 2(e)) or a positive V_BG pulse (figure 5(c)).

Figure 5(d) shows the MoS₂/h-BN heterostructure capacitance (C) as a function of V_FG at different frequencies (f). The measurement was conducted when V_FG was applied between the floating gate and source electrode. A minimum C of 50 fF was obtained at V_FG = 1 V, f = 5 MHz. The ultralow heterojunction capacitance, together with the large on/off ratio, make the MoS₂-channel flash memory potentially usable as a high-frequency half-wave rectifier. Figure 5(e) shows a schematic of the measurement setup, which contains an arbitrary waveform generator (AWG) to produce a high-frequency sine or square voltage signal, a current amplifier to transfer the current signal to the voltage signal, and an oscilloscope to display the output voltage signal. During the measurement, the output sine voltage signal from the AWG was connected to the drain electrode, whereas the source electrode was connected to the input port of the current amplifier. Figure 5(f) depicts the half-wave rectification characteristics of the MoS₂-channel flash memory after treatment with a 20.2 V, 50 ns pulse (figure 5(c)). Owing to its reverse rectification property, only the reverse half-wave sine signal can pass through the MoS₂-channel. The blue line in figure 5(f) presents the input sine voltage signal with a peak-to-peak value of 0.75 V and frequency of 1 MHz. The output curves (black line in figure 5(f)) display an ideal half-wave sine waveform. Similar results are observed in figure S14, where the half-wave rectification limit reaches 3 MHz. It is worth mentioning that the half-wave rectification frequency is three orders of magnitude higher than that of the commercial p-n junction diode (1 kHz, figure S15(b)) with a heterojunction capacitance of 120 pF at f = 1 MHz (figure S15(d)). The high rectification frequency may be due to the ultralow junction capacitance of the MoS₂-channel flash memory induced by the ultrathin heterojunction with an atomically sharp interface, paving the way toward the realisation of a low-power, high-frequency sine signal rectifier.

3.   Conclusions

In summary, we demonstrated the performance of an ultrafast flash memory with an atomically thin channel transistor. The memory device is composed of a monolayer MoS₂ channel, a few layers of h-BN, and a Cr/Au metal floating gate. Due to the high-density charge states and work function engineering of the metallic floating gate, the flash memory manifests a larger memory window width of 27.8 V when it is double-swept from -15 V to 15 V, achieves ultrafast programming/erasing speed down to 20 ns, reveals stable retention up to 1000 s, and endures over 400 cycles. Though the number of program/erase cycles of our device may be low, the memory performance can be improved by choosing an inactive metal as the floating layer or using other van der Waals dielectric material. In addition, the MoS₂-channel flash memory demonstrates a unique self-rectifying behaviour with an on/off ratio larger than 10⁸, which is very interesting and can enable use as a bit-line select transistor in NAND flashes. Furthermore, the large on/off ratio and low junction capacitance (50 fF) facilitate the potential application of this device as a high-frequency (>1 MHz) half-wave rectifier. These results pave the way toward the realisation of ultrafast flash memory with novel functionality in modern semiconductor architecture.
