Tailoring the oxygen concentration in Ge-Sb-O alloys to enable femtojoule-level phase-change memory operations

Future perspectivesThe rapidly growing demand for data storage and processing is posing a serious challenge for the current computing architecture. Emerging non-volatile memory combines the advantages of both fast operation and persistent storage, holding great promises to improve the computing and energy efficiencies by substantially reducing the heavy data traffic between multiple electronic units. Among the competing materials candidates, phase-change materials (PCMs) that exploit phase transitions between the crystalline and amorphous states are at the forefront for commercialization. Despite the success of PCMs in high-density binary storage, e.g. the 3D Xpoint memory products, much efforts are being taken to further improve the materials properties to enable devices with lower power consumption, faster switching speed, better thermal stability, wider contrast window as well as suppressed resistance drift. The design and synthesis of new materials that can achieve these goals are critical for the development of phase-change memory devices for multilevel storage, neuro-inspired computing, photonic computing, and flexible displays.

1.   Introduction

The total data volume worldwide has been drastically increased in the past decades, and is predicted to reach 10²³ bytes by 2025. Storing and processing the massive datasets quickly and accurately at a manageable energy cost poses a serious challenge for current electronic devices. The emerging non-volatile memory [1-3] and neuro-inspired computing [4-6] technologies hold great promises to cope with this data crisis. Such novel electronic or optoelectronic devices rely on the development of new materials, such as phase-change materials (PCMs) [7-13], resistive-switching oxides [14], ferroelectric [15] and spintronic materials [16], two-dimensional materials [17] and polymers [18]. Among these promising materials candidates, PCMs are already technologically mature, and have been commercialized recently [19]. The basic working principle is to utilize the rapid switching capability of PCM, in particular, Ge₂Sb₂Te₅ (GST), between its crystalline state and amorphous phase for memory programming [7-12]. The logic states 0’ and 1’ are defined by the large contrast in electrical resistance [20-23] or optical reflectance/transmission [24-28] of the two solid states, which originate from a fundamental change in electronic structure and bonding character upon phase transition [29-32].

The crystallization (SET) or amorphization (RESET) of GST proceeds via Joule heating brought by external pulses. To amorphize the crystalline state, the rigid lattice needs to be melted down first. This step is the bottleneck in terms of energy cost, because of the high melting temperature of GST (900 K). Device miniaturization with proper thermal insulations is typically used to reduce power consumption [33]. But conventional GST devices still require tens of picojoules to nanojoules for each RESET operation. In 2011, Xiong et al managed to deposit GST into the nanogaps between carbon nanotubes (serving as electrodes), which drastically reduced the switching volume, leading to 100 femtojoules per RESET operation [34]. Further optimization was made by using GST nanowires and carbon nanotubes electrodes in 2013, reaching a RESET energy of 80 femtojoules [35]. In 2022, Wang et al have developed a more realistic approach to reduce the active switching volume of GST for integrated devices with an ultrascaled edge-electrode using very narrow graphene nanoribbons embedded in hexagonal boron nitride multilayer, reaching 54 femtojoules per RESET operation [36].

In parallel to these device miniaturization schemes, much progress has also been made in designing new materials to achieve low-power operations while keeping the device structure unchanged. By alloying Sb₂Te₃, the parent phase of GST, with various transition metal dopants, such as scandium [37-45], yttrium [46-50], titanium [51-54] and others [55-57], the RESET energy can be reduced by approximately one order of magnitude as compared to GST in the same device condition. This could be generally attributed to the easier disordering (melting) of the rocksalt-like lattice with higher concentration of atomic vacancies [37]. Another effective approach is to replace the homogeneous switching medium with the GeTe/Sb₂Te₃ superlattice [58-65] or the TiTe₂/Sb₂Te₃ heterostructure [66-71]. The working mechanism of the former is still under debate, while the latter features a quasi-two-dimensional switching of Sb₂Te₃ under confinement of robust TiTe₂ crystalline nanolayers. The melting of only the Sb₂Te₃ nanolayers and the high thermal barrier brought by the TiTe₂ walls also result in about one order of magnitude reduction in RESET energy [66]. Sub-picojoule amorphization energy was also reported by using a Cr₂Ge₂Te₆ layered material [72].

In early 2022, we have designed a conductive-bridge phase-change memory (cbPCM) scheme [73] that combines the advantages of phase-change memory with filamentary-switching in metal oxides. The essential idea is to minimize the active switching volume in conventional devices via phase separation. Under external stimulus, e.g. heating or electrical pulses, the switching medium spontaneously decomposes into a heterogeneous network with domains having different crystallization temperature, T_x. As sketched in figure 1(a), a conductive path forms in the amorphous matrix (high T_x) by crystallizing only the nanobridges between different crystalline nanodomains (low T_x). In [73], we chose to incorporate oxygen into Ge-Sb alloys [74-76] to increase their tendency to self-decompose into Ge-enriched and Sb-enriched regions intermingled in a network, and have achieved an average RESET energy of 43 femtojoules per operation using a set of Ge-Sb-O (GSO) devices. The essential ingredient that makes functional GSO devices is the oxygen content in the alloy, which however requires very careful control and calibration. In this work, we monitor the degree of oxidation during the alloy film deposition process and show that the concentration of oxygen has to be maintained at a relatively low level; otherwise, inside a heavily oxidized amorphous matrix it would no longer be feasible to create a conductive path.

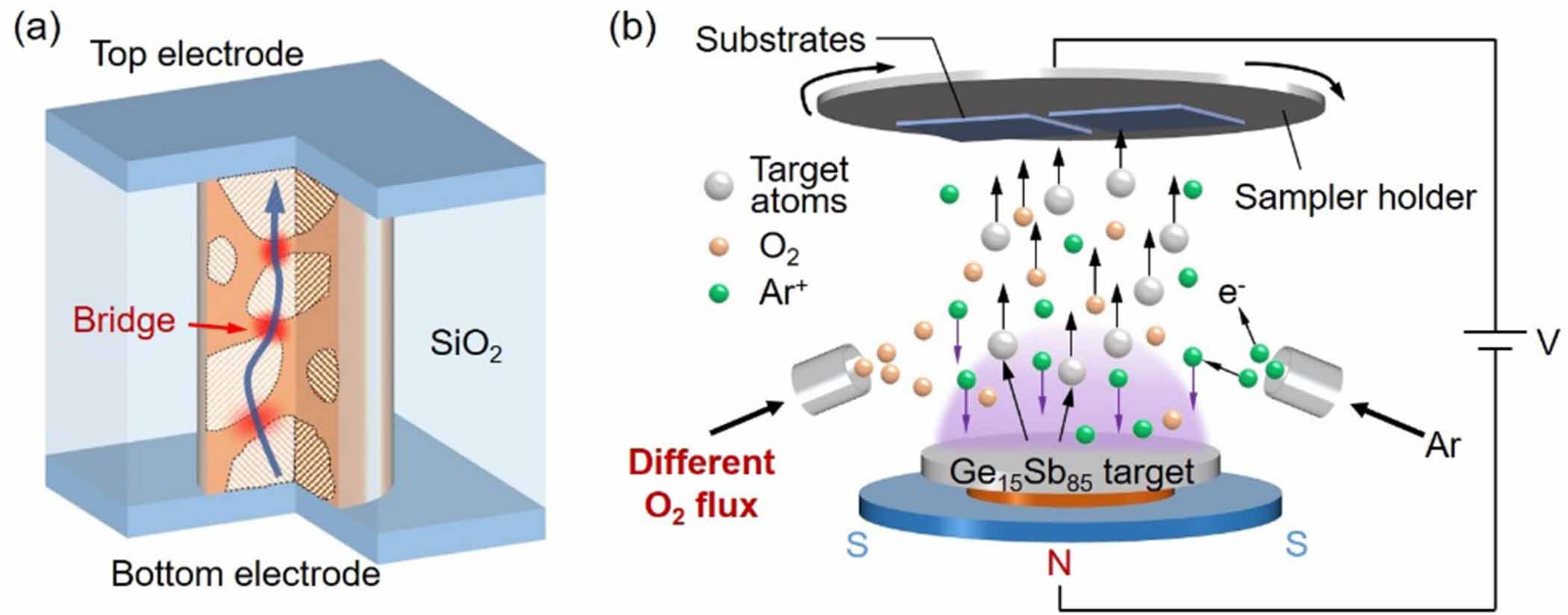

Figure  1.  Tailoring the degree of oxygen incorporation in Ge-Sb-O alloys. (a) The sketch of a potential conductive path inside the heterogeneous network consisting of Sb-rich crystalline nanodomains and Sb-poor glass matrix. (b) Schematic depicting the sputtering of a Ge₁₅Sb₈₅ alloy target with varied O₂ flux under a protective atmosphere (Argon), resulting in oxygen incorporation to various levels.

DownLoad: Full-Size Img PowerPoint

2.   Results and discussion

We deposited various GSO thin films of 100 nm thickness using a high-purity Ge₁₅Sb₈₅ alloy target under O₂ flow on silicon/silica substrate through direct current magnetron sputtering at room temperature, as sketched in figure 1(b). The sputtering power was set as 30 W and deposition rate was calibrated as 100 nm min^-1. The O₂ flow rate was adjusted from 0 to 12.5 sccm under protective Ar flow of 50 sccm. The pressure of the chamber was 0.5 Pa. A 5 nm ZnS-SiO₂ capping layer was also deposited to prevent further oxidation at the surface. The five GSO thin films under O₂ flow rate = 0, 2, 5, 7.5 and 12.5 sccm were then used for electrical resistance, x-ray diffraction (XRD) pattern, Raman spectroscopy and x-ray photoelectron spectroscopy (XPS) and energy-dispersive spectroscopy (EDS) measurements.

The temperature-dependent electrical resistance (R-T) measurements were made using the van der Pauw method. Figure 2(a) shows the change in sheet resistance of the five thin films upon heating with a heating rate of 10 C min^-1. With moderate oxygen doping below 7.5 sccm, the GSO thin films show a similar R-T profile as compared to the undoped Ge₁₅Sb₈₅ thin film [77-79] with a clear drop at T_x 235 C, indicating the onset of crystallization. Yet, a gradual increase in resistance is observed for both the initial amorphous phase and the annealed phase at 300 C as the oxygen concentration increases. A clear deviation in the R-T profile is observed in the heavily doped GSO thin film (12.5 sccm), which shows a higher T_x 260 C and a much larger sheet resistance value at 300 C as compared to the other four thin films.

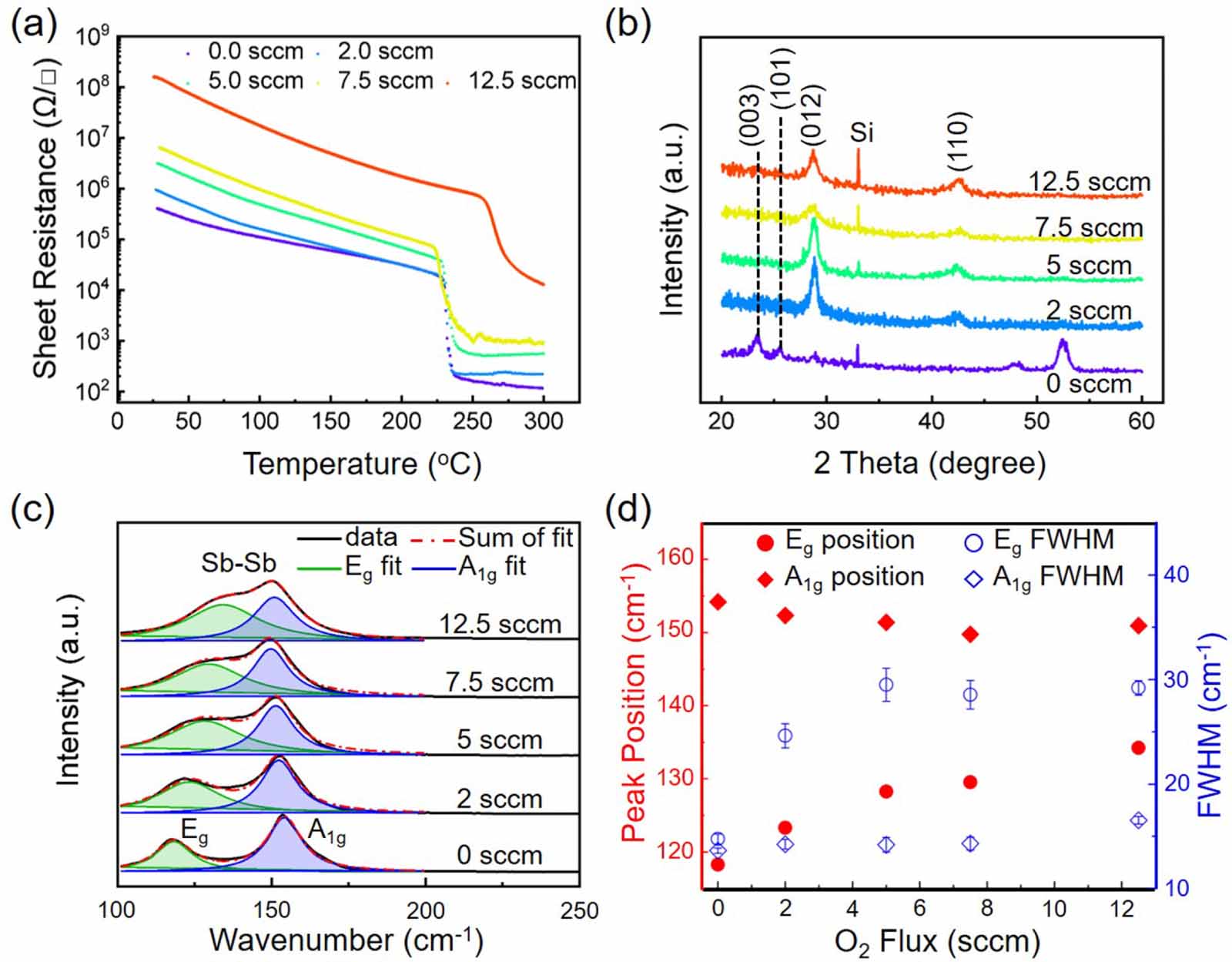

Figure  2.  Electrical and structural characterizations of GSO thin films. (a) The resistance-temperature (R-T) curves of Ge₁₅Sb₈₅ and four GSO thin films upon heating. (b) The room temperature XRD pattern measurements of the five annealed thin films obtained after R-T measurements done at 300 C. (c) The Raman spectra of the annealed thin films in the range of 100 and 250 cm^-1. The fitted E_g and A_1g modes are marked in green and blue, respectively. (d) The corresponding peak positions and FWHM values.

DownLoad: Full-Size Img PowerPoint

To assess the structural properties of the thin films after heating, we carried out XRD measurements at room temperature. As displayed in figure 2(b), the undoped Ge₁₅Sb₈₅ thin film shows major reflections at (003), (101), (006) and (202), corresponding to the rhombohedral phase of Sb-rich domains [79]. The four GSO thin films also crystallized in the rhombohedral phase with Sb-rich grains, despite the change in crystallographic orientation, showing major reflections at (012) and (110). The (012) peak is gradually broadened as the oxygen level increases, indicating increased structural disorder upon the introduction of oxygen. No sign of pure Ge nor GeO₂ crystallites was observed in the annealed GSO thin films.

Figure 2(c) shows the Raman spectroscopy measurements (using an excitation laser wavelength of 532 nm) of the annealed thin films in the range of 100-250 cm^-1. In the undoped case, the peaks in 115 cm^-1 and 155 cm^-1 correspond to the E_g and A_1g modes of rhombohedral Sb [80]. The two peaks merged gradually with the increase of oxygen alloying. To understand this behavior, we used two Lorentzian functions to fit the spectra between 100 cm^-1 and 175 cm^-1 and evaluate the full-width half maximum (FWHM) values and peak positions of the two modes. The sum of fitted curve is marked by red dash-dot line, the fitted E_g and A_1g modes are indicated by green and blue lines, respectively. The corresponding FWHM values and peak positions are given in figure 2(d), which shows that oxygen doping induces a pronounced broadening of the E_g mode with FWHM increasing from 14 cm^-1-29 cm^-1, and also a slight broadening of the A_1g mode. In addition, opposite shift in the peak position is found in the E_g mode (blue shift) and the A_1g mode (red shift), leading to a progressive merging of the two peaks.

In general, crystalline phase of high uniformity in terms of bond angles and lengths results in a limited number of vibration states, and hence sharp Raman peaks at characteristic wavenumbers. In contrast, amorphous phase with disordered atomic arrangement exhibits a much wider range of bond angles and bond lengths, and the distribution of possible states leads to broader Raman peaks [81-84]. In our measurements, the enlarged FWHM values of the E_g and A_1g mode indicate an incomplete crystallization with oxygen doping, despite thermal annealing at relatively high temperatures. This behavior can be attributed to the much higher crystallization temperatures of oxides, e.g. the GeO₂ glass has a T_x above 700 C [85].

To gain a better understanding of the amorphous phase, we carried out XPS measurements on the as-deposited thin films. All binding energies were corrected with respect to the C 1 s peak. Figure 3(a) shows the Ge 2p spectra with the binding energy range between 1210-1225 eV. In undoped Ge₁₅Sb₈₅, the peak of Ge 2p_3/2 is detected at 1218 eV, corresponding to the Ge homopolar bonds (Ge-Ge) [86]. Even with a relatively low doping level of oxygen (2 sccm), the Ge-Ge peak is already weakened, and a distinct peak of Ge-O at 1220 eV is identified. As the oxygen doping increases to 5 sccm, the Ge-Ge peak is no longer visible, leaving only the GeO₂ peak. Figure 3(b) shows the Sb 3d spectra between 525-545 eV. The Sb 3d spectrum of undoped Ge₁₅Sb₈₅ exhibits two contributions, 3d_5/2 and 3d_3/2, due to the spin-orbit splitting, which are located at 528 eV and 538 eV, respectively. Small Sb-O contributions start to appear at 531 eV and 540 eV in the GSO thin film obtained under 5 sccm oxygen flux, stemming from the formation of Sb₂O₃ [87]. The two peaks are further enhanced as oxygen doping level increases.

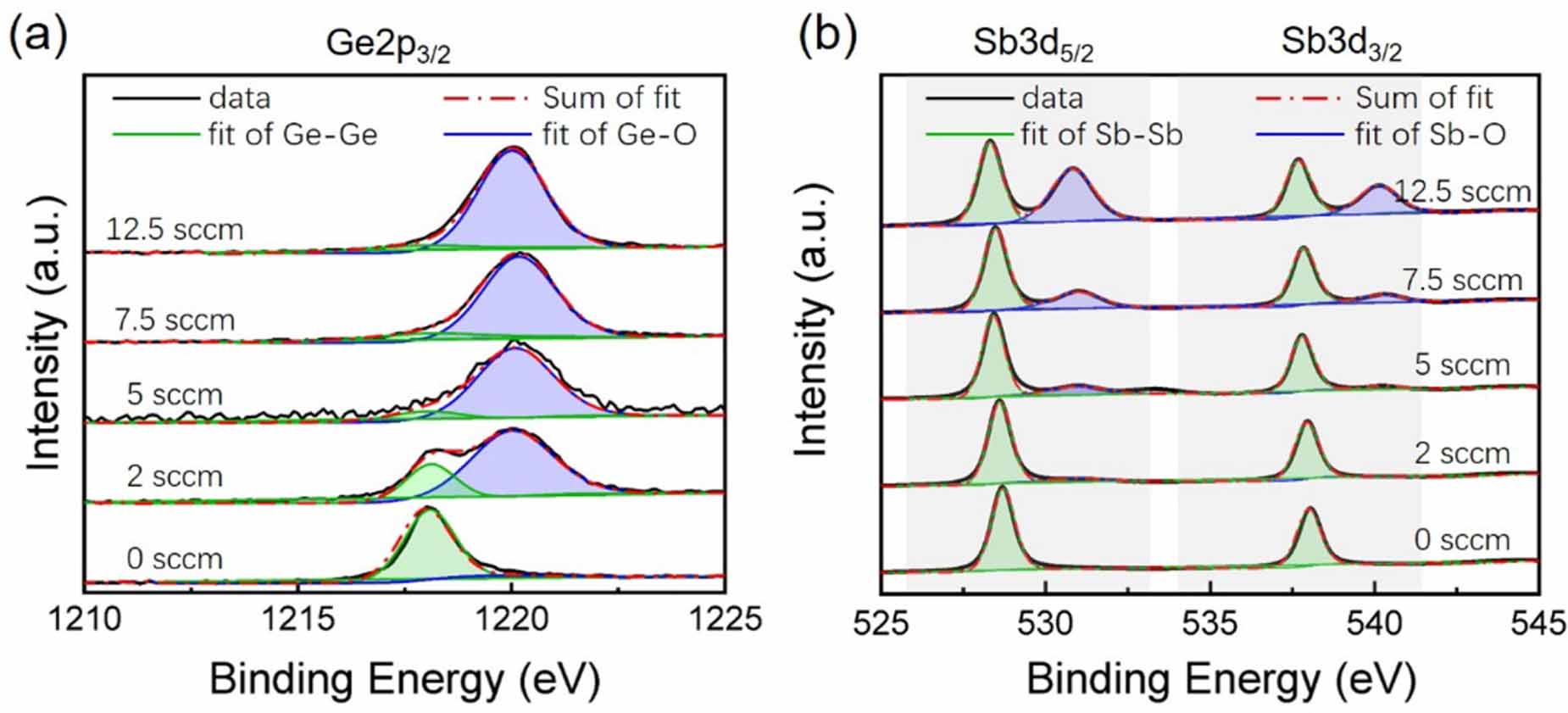

Figure  3.  High-resolution XPS spectra of (a) Ge 2p3/2 and (b) Sb 3d for as-deposited Ge₁₅Sb₈₅ thin films prepared under different oxygen flux. The blue and green regions represent the fitting of different components, and the sum of fitted curves are marked by red dash-dot line.

DownLoad: Full-Size Img PowerPoint

This two-step oxidation process can be explained by the stronger tendency to form germanium oxides, as their formation energy is much more favorable than that of antimony oxides [73]. Unlike germanium, antimony is the main component of the thin film, hence the Sb-Sb peaks still remain high even in the heavily doped GSO thin film (12.5 sccm). But if the major fraction of antimony is also oxidized, no sign of crystallization can be observed below 300 C [76]. To design readily switchable conductive bridges, we need to keep a low T_x for the Sb-rich domains so that they can be easily crystallized with external thermal or electrical stimulus. Therefore, excessive oxygen content in antimony should be prevented. From the above analyses, we regard 2-5 sccm as the suitable oxygen flow rate range for sputtering Ge₁₅Sb₈₅, and such flow rates should be further reduced if a Sb-richer alloy target is used. With high oxygen flow rate (12.5 sccm), the oxygen concentration in these GSO thin films was estimated to exceed 35 at% by EDS measurements, while less oxygen was incorporated into the thin films in the range of 10-16 at% at 2-5 sccm. The latter is compatible with that reported in [73], 16 at%, which was determined by atom-probe tomography measurements.

For validation, we fabricated two GSO devices with light and heavy oxygen doping. Figure 4(a) shows the device structure. A hole with diameter of 250 nm was etched in a 100 nm thick SiO₂ dielectric layer, and the Ge₁₅Sb₈₅ target was sputtered under oxygen flow rate of 2 and 12.5 sccm for the two devices. The devices were covered with a 50 nm tungsten electrode thin layer to prevent further oxidation. Then we applied DC sweeps to the two devices to pattern the heterogeneous network. As seen in the current-voltage (I-V) profiles, the heavily O-doped GSO device showed a highly resistive behavior up to 10 A (figure 4(b)), while the other device was switched to a low-resistance state at 3.25 A, and the subsequent DC sweep confirmed the conductive nature of the latter device (figure 4(c)). The former device is regarded as a RESET-stuck failure, due to over-oxidation. Figure 4(d) shows a typical RESET operation of GSO device with suitable oxygen doping. To guarantee a low RESET energy $E_{\text{RESET}}=I\times U\times \mathrm{\Delta }t=U_{\text{RESET}}^2\times \mathrm{\Delta }t/R_{\text{SET}}$, it is desirable to have a SET state with relatively high resistance [73], e.g. 7.5 M in this case. By applying a series of voltage pulses with t = 50 ns (FWHM), the resistance of the device increased to more than 40 M at 2.5 V. The RESET energy is estimated as 41.6 fJ, close to the average value reported in [73].

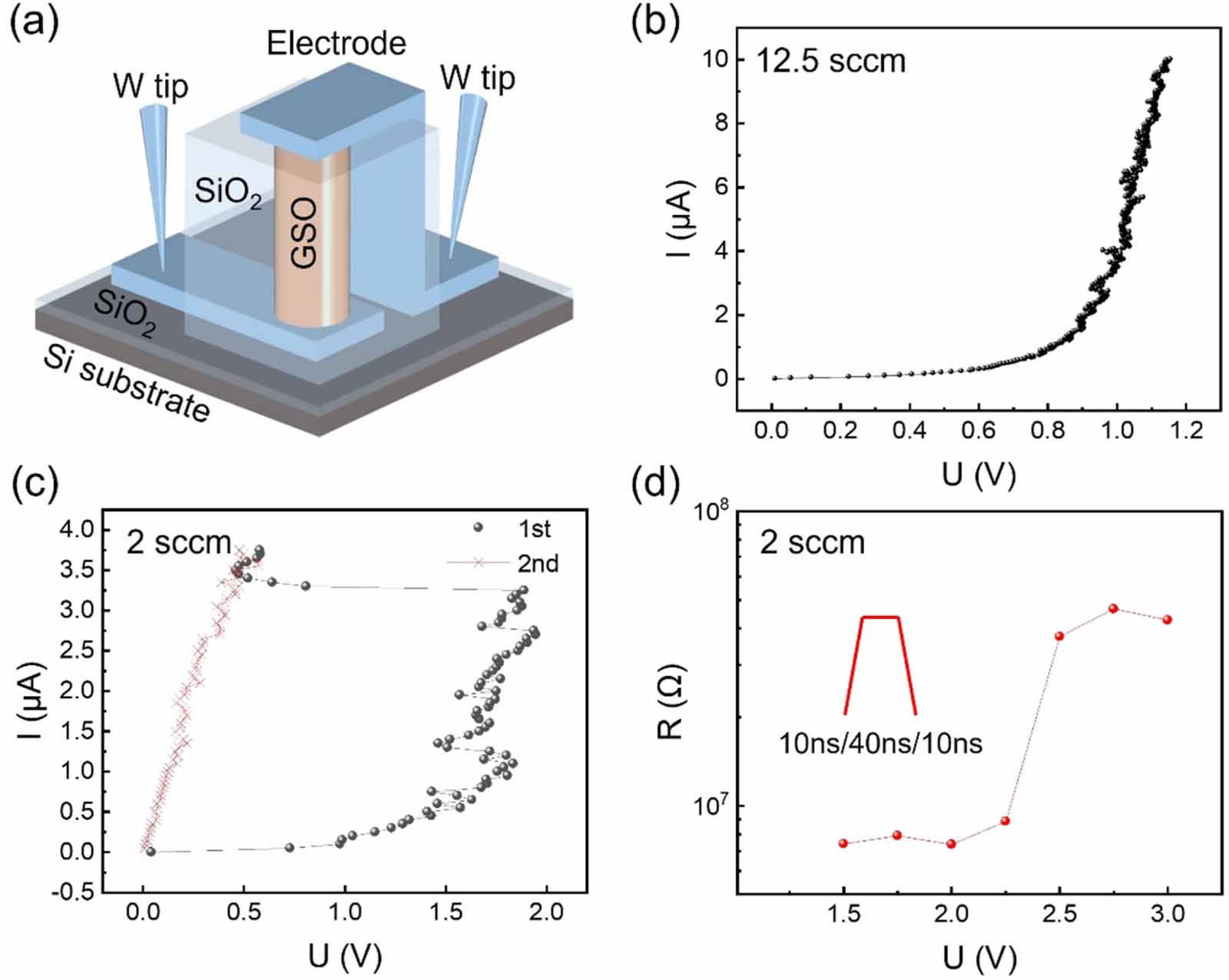

Figure  4.  Electrical performance of the GSO devices. (a) Schematic of the experimental setup for electrical testing of GSO devices in a probe station. (b) and (c) The current-voltage (I-V) characteristics of the GSO devices with heavy and light oxygen doping by DC sweeps. (d) The resistance-voltage (R-V) characteristics of the 2 sccm GSO device under RESET operation. The applied pulse waveform is shown in the inset.

DownLoad: Full-Size Img PowerPoint

Figure 5 summarizes how to enable the cbPCM working mode via oxidation. With low-level oxygen incorporation, amorphous GSO alloys get crystallized almost completely upon SET operation. The potential presence of amorphous domains due to oxidation can hardly alter the electrical performance of GSO devices, as the electric current can pass through the crystalline matrix easily. The switching of GSO proceeds in the conventional PCM mode. Regarding the heavily oxidized case, the vast majority of germanium and antimony atoms form strong bonds with oxygen atoms. The high crystallization temperature of GeO₂ and Sb₂O₃ makes the glass domains insensitive to SET pulses. Therefore, GSO devices get stuck in the high-resistance state, and cannot be programmed. Only with moderate-level oxygen incorporation, GSO devices can function in the cbPCM mode with robust GeO₂-dominant glass domains and Sb-rich crystalline domains so that the nanobridges in between can be effectively switched. To achieve this goal, the formation of antimony oxides in large fractions must be avoided, and it is important to use an alloy target with relatively high germanium concentration, such as Ge₁₅Sb₈₅, for sputtering to guarantee the abundance of germanium oxides glass in the heterogeneous network.

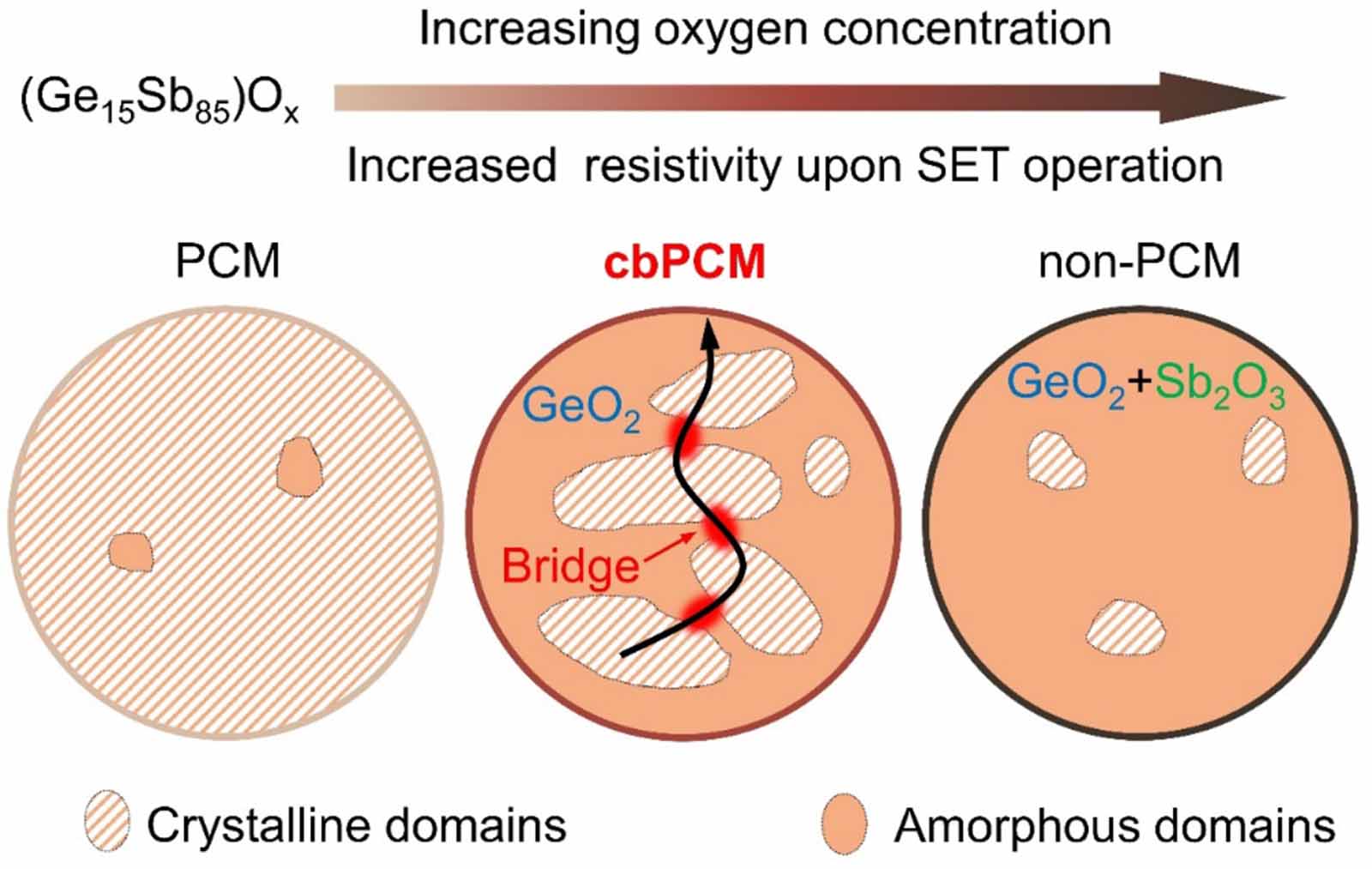

Figure  5.  The sketch of different working modes as the oxygen concentration in GSO alloys increases. Upon SET operation, the ratio of crystalline/amorphous domains varies significantly as a function of oxygen concentration.

DownLoad: Full-Size Img PowerPoint

3.   Conclusions

In summary, we have reported a thorough experimental characterization of the self-decomposed GSO alloys for low-power phase-change memory application. We have tailored the oxygen concentration in the Ge₁₅Sb₈₅ thin films and revealed a two-step oxidation process as the doping level gradually increased. We note that the relatively rich germanium concentration and moderate oxygen doping are essential to build the heterogeneous network with an intermixed GeO₂ glass domains and Sb-rich crystalline domains, allowing the formation of conductive path under external electrical stimulus. This spontaneous decomposition in the GSO alloy reduces the active switching volume sharply despite large contact areas with electrodes, as only parts of the conductive bridge need to be melted upon RESET pulsing. We note that this cbPCM scheme inevitably introduces certain randomness for device programming, as the formation of heterogeneous network differs from device to device. In addition to binary storage, heterogeneous PCMs could also be useful for the emulation of stochastic phase-change neurons [88] and for the development of physical unclonable functions [89].
